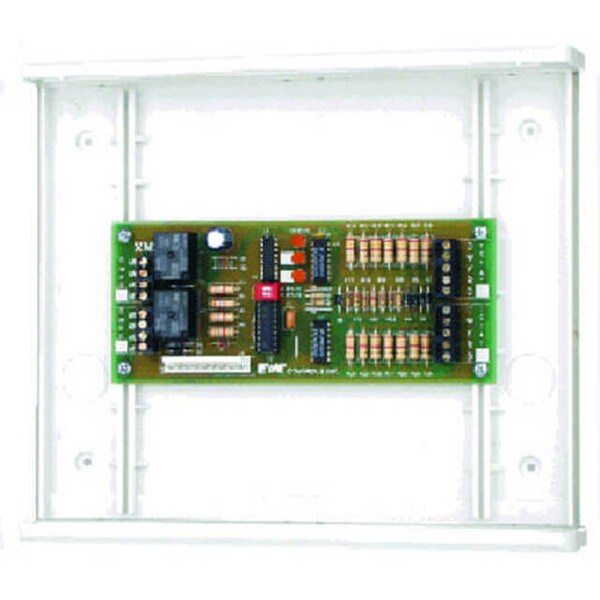

Ultra-Zone Forced Air Zone XM2 Expansion Module to add additional Zones to the BMPlus 3000 Zone Control System
The advanced XM2 Expansion Module allows you to easily add additional zones to the BMPlus 3000 Zone Control System. Number of Zones: Provides 2 additional zones for the Model BMPlus3000. A total of 2 Model XM-2 expansion Modules can be utilized to add up to 4 additional zones. Compatible Thermostats: Any single stage Heat/Cool Thermostat or 2 Stage Heat, 1 Stage cool Heat Pump Thermostat. Compatible Dampers: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper. Additional Features: On Board LED’s indicate system operation. The XM2 Expansion features automatic changeover from any thermostat allowing for individual zone comfort from the HVAC system. The XM2 Expansion Module can add up 2 or 4 zones on with 1 or 2 expansion modules with a BMPlus Zone control system. The STATUS LED pulses as a steady heart beat to indicate active Micro- processor status. LEDs indicate which dampers are open.
