FP-SDMN5

(0 ) No Reviews
SKU: FP-SDMN5

Call for Pricing

Back

Details

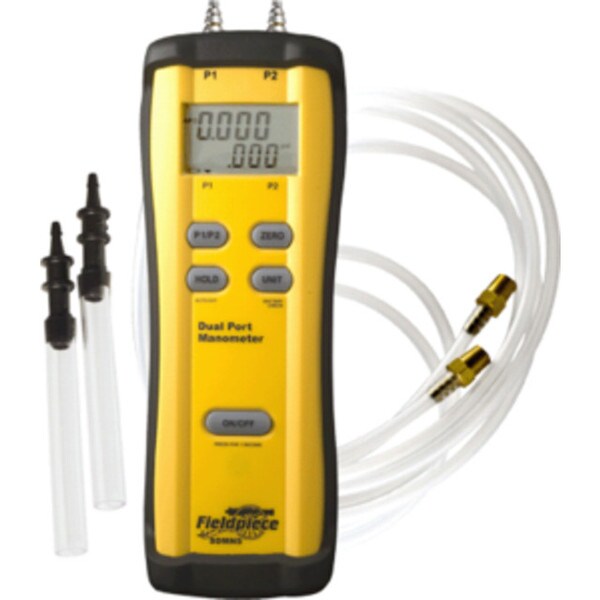

Dual Port Manometer - Measures Gas Pressure, Static Pressure and Differential Pressure
Features:
                            • The SDMN5 is a portable, rugged dual-port manometer designed especially for HVACR field service technicians.
                            • Measures gas pressure, static pressure and differential pressure P1-P2.
                            • Measure duct pressures to balance air flow.
                            • The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function conserves battery life.
                            • The SDMN5 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar.
                            • The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2.
                            • Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar.
                            • Includes 3/16” to 5/16” adapter for measuring gas inlet and outlet pressures.
  • Measure gas pressure on the inlet and outlets with the standard 3/16” fittings or the included adapters for 5/16” ports, take static pressure measurements across a blower and get the pressure differential with the push of a button to (more...)
