EW-12URD

(0 ) No Reviews
SKU: EW-12URD

Call for Pricing

Back

Details

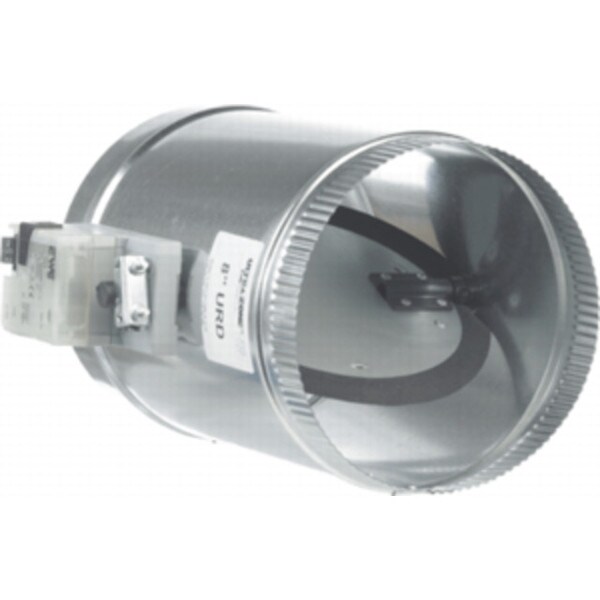

Ultra-Zone Forced Air Zone Motorized Round Dampers, 12" Dia, 14" Length
Features:
  • A single blade round damper with a (2) two position, 24 volt motor.
  • The motor is powered both ways - powered open and powered closed.
  • The motor features LED's that indicate the position of the motor whether open or closed.
  • The LED's are colored RED for closed and GREEN for open.
  • These indictors are a failsafe measure meaning that they will not illuminate until the blade of the damper has gone to its full open or full closed position.
  • The motor is a 3 wire hook-up with a common, a power open leg and a power closed leg.
  • The URD Round Dampers are an Inline Duct damper and have a double layered blade design with an integrated cellular foam sealing gasket.
  • URD Round Dampers are easy to install and come with a 5 year warranty.
  • The URD Round Damper is constructed of heavy gauge galvanized steel.
  • The Nylon bearings and Thermo-Tuff drive shafts insure smooth, quiet operation and provide a thermal barrier to the Motor Actuator.
  • The URD Damper is designed to operate at static pressures up to 1.5” w.c. with minimal leakage.
(more...)
