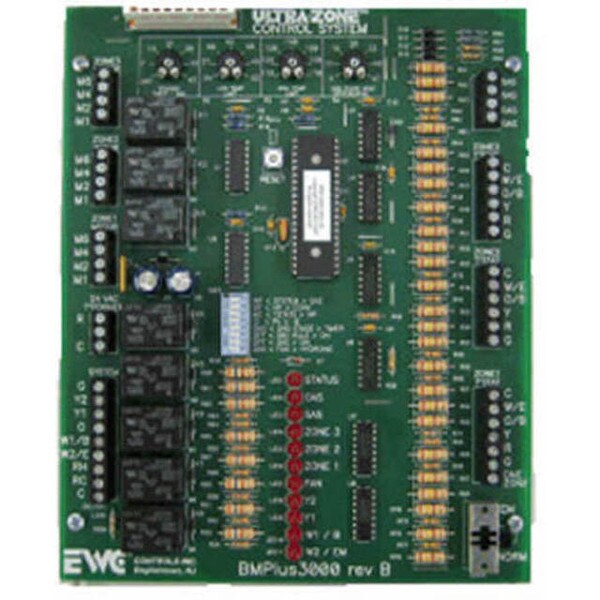

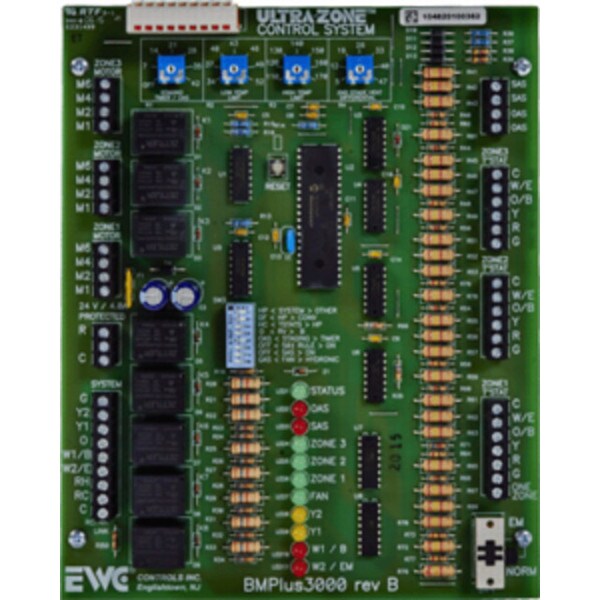

Ultra-Zone Forced Air Zone Control Panel, 3 Zone
Compatible Equipment: Compatible Thermostats: Any single stage Heat/Cool Thermostat or 2 Stage Heat, 1 Stage cool Heat Pump Thermostat. Compatible Dampers: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper. The new BMPlus3000 series of control panels are designed for optimum performance and superior comfort. Staging via Adjustable On-board Timer or OAS. (7 to 42 Minutes or 7° to 42°F). 50% Rule to limit staging if less than half the total zones are demanding Heating or Cooling. Supply Air Temperature Monitoring to help protect HVAC equipment. 100% Dual Fuel Compatible. On Board LED’s indicate system operation.
- Gas/Electric/Hydro – Up to 2 Stages Heating and 2 Stages Cooling.
- Heat Pump Conventional or Dual Fuel – Up to 3 Stages Heating and 2 Stages Cooling.
