EWC Controls

EWC Controls 24X10 ND

Part #: EW-ND24X10SM

MPN: 24X10 ND

UPC: 845484000838

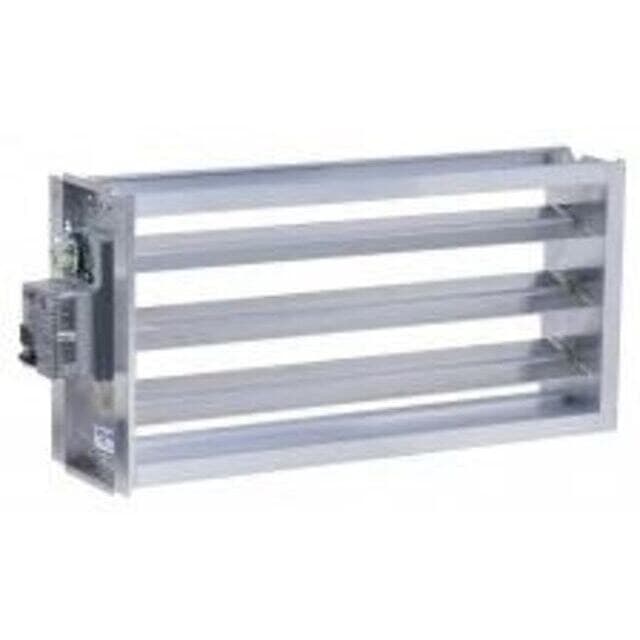

EWC Controls Ultra-Zone ND Series 24 in. x 10 in. rectangular motorized zone damper with overlapping parallel aluminum blades and a 24 VAC power-open/power-close actuator.

Submittal & ratings

Breaker sizing (MCA / max overcurrent), line set connection sizes and unit dimensions.

EWC Controls Model ND Rectangular Dampers with MA-ND5 Actuator Submittal Sheet (090377A0071) (PDF)

Don't have an account? Request access →

UOM: EA

Brand Segment: Other
Business Segment: IAQ
Configuration: Side Mount
Electrical Connection: 3-wire quick-connect terminal block (COM / PO / PC)
Height: 7
Length: 29
Material: Heavy-duty extruded aluminum frame and overlapping parallel blades with nylon bearings
Motor Type: MA-ND5 actuator, 3-wire power open/power close (or floating), 18 in-lb torque, NEMA 1 housing, manual gear release
Preferred Vendor: EWC CONTROLS INC
Pressure Rating: 1.5 in. w.c.
Product Segment: Zoning
Product Type: Zone Dampers
Series: ND (Ultra-Zone)
Shape: Rectangular
Vendor Line: Other
Vendor Part Number: 24X10 ND
Voltage Rating: 24 VAC, 50/60 Hz, 1.5 VA / 1 W
Width: 14
ERP item ID: 7427
